SS ZERO HOLD UP FILTER

SOLID/LIQUID SEPARATION

  • Our filters add new dimensions to solid/liquid separation by introducing India’s first zero hold up a filter that meets all demands for a filtration which would discharge solid free filtrate
  • Our filters solve the majority of separation problems with additional features from the new concept of zero hold up horizontal closed pressure filter as compared to conventional sparkler filters



  • HOW DOES IT WORK?

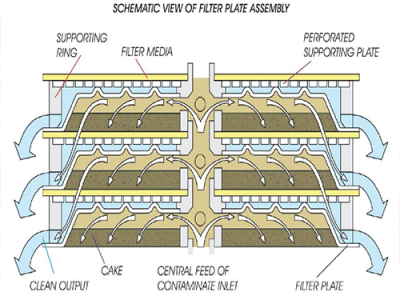

    The plate pack assembly consists of plates with interlocking cups, plate rings, perforated screens, and filter media. Interlocking cups are arranged above other forms of the single pipeline. The unfiltered liquid is centrally fed under pressure from the bottom inlet. The liquid spreads out equally on each plate fitted with filter media.
    READ MORE










  • FEATURES OF OUR SS ZERO HOLD UP FILTER


    •     Single-pass filtration with no solids bypass
    • Full batch recovery with no extra scavenging system required
    • Proper sealing allows the filtration of volatile, toxic & inflammable products
    • No solids inside the filter vessel
    • Cake solids can be maximum dried with N2
    • The complete cake retains over the plate surface
    • Uniform distribution of cake on each plate
    • Filter ranging from 8’’ diameter to 33’’ with a variable number of plates





  • MATERIAL OF CONSTRUCTION

    • Stainless Steel 316
    • Stainless Steel 316L
    • Stainless Steel C-276 & C-22
    • Stainless Steel 904 L
    • Hastelloy C-276 & C-22



Location: D-18, MIDC Rd, MIDC Area, Panchwati, MIDC Ambad, Nashik, Maharashtra 422010, India
